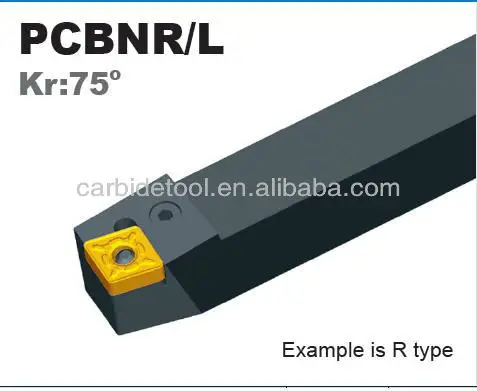

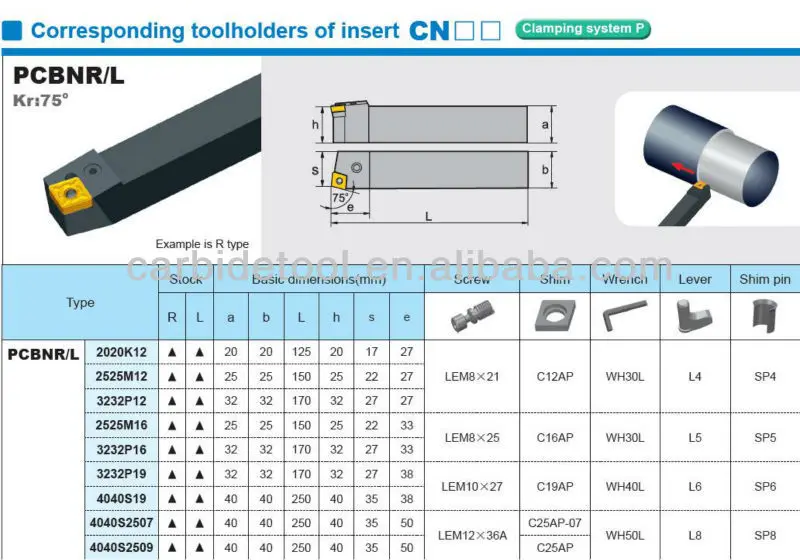

CNC lathe machine internal turning tool cutting lathe tool holder with inserts

FOB Reference Price:Get Latest Price
US $2-50 / Pieces | 2 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hunan, China (Mainland)
Brand Name:
ZCCCT
Model Number:
PCBNR/L
Application:
Turning Tool
Name:
CNC lathe machine cutting lathe tool holder with inserts
Type:
CNC TOOLS HOLDER
Product name:
Lathe Machine Tool Holders
Usage:
CNC Machine Center
Material:
Alloyed Steel
Machine available:
Turning Machine
Workpiece Material:
Low Alloy
Standard:
MAS403
Hardness:
HRC58 2mm
Payment:
T/T
Supply Ability
Supply Ability:
10000 Kilogram/Kilograms per Month lathe tool holder
Packaging & Delivery
Packaging Details
in wooden box wrapped by waterproof paper each. The package is available based on customers' requirements.
Port
Ningbo/Shanghai

CNC lathe machine internal turning tool cutting lathe tool holder with inserts



Specifications

1.CNC machine inserts
2.Processing steel, iron, aluminium etc
3.CVD/PVD coating
4.ISO9001 and BV certification

5.High quality PCD tip

6.Feeding insert for CNC

7.All types&sizes (P10-P30, K01-K30, M10-M35)

8.Fast delivery

9.Customized order is available








 Tungsten carbide cutting tools-.jpg





 Grades:

YBC151

High wear resistance of the matrix and MT-TiCN, thick Al2O3 and TiN coating.

YBC152

Thick TiCN and Al2O3 coating

YBC251

tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating.

YBC252

Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating.

YBC351

Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating.

YBG102

nc-TiAN coating and fine-grained matrix.

YBG201

PVD coating

YBG205

Added abrasion resistance and high temperature rare elements ultrafine TiAlN based nano-coating. High layer hardness and excellent resistance to high temperature provide effective protection for the cutting edge.

YBG302

nc-TiAN coating and flexible cemented carbide matrix.

YBM151

Special organizational structure and TiCN, thin Al2O3 and TiN coating.

YBM251

Good toughness and strength matrix and TiCN, thin Al2O3 and TiN coating.

YBM253

With the advance extra fine grain nanometer coating technology, match up with the high toughness gradient matrix.

YBD052

CVD coating(extra thick Al2O3 & thick TiCN), hard matrix.

YBD102

CVD coating (thick Al2O3 & thick TiCN) , hard matrix.

YBD152

CVD coating (thick Al2O3 & thick TiCN), hard matrix, it is anti-stripping.

YBD252

CVD coating (middle thick Al2O3 & thick TiCN), hard matrix.

YNG151

Uniform particle refining organizational ceramal alloy, homogenizing organizational & ring form phase structure, Strengthen bond phase,grain boundary composition design.

YNG151C

Physics weather deposit (PVD) coating, high toughness ceramal matrix.

YD101

Fine particle hardness phase WC and bond phase Co.

YD201

Middle particle hardness phase WC and bond phase Co.





Contact Details:



Yuyu

Tel: +86-0731-28821498

Fax: +86-0731-22332243

Whatsapp: +86 13397339096

Email:13397339096(at)ojinxin.com

Skype: jinxin0229



Add:No.28 Xinhua Road,Zhuzhou City,Hunan Province,China









Advantage:

1. 10 years professional experience.

2. 100% new material.

3. Be more durable.

4. OEM & ODM Service.

5. All payment terms supported.

6. Fast delivery time & Convenient Transportation.
