Carbide tooth for rock drilling bits which from Zhuzhou tungsten carbide base

FOB Reference Price:Get Latest Price
US $50-90 / Kilogram | 10 Kilometer/Kilometers (Min. Order)
Supply Ability:
400000 Kilogram/Kilograms per Month
Port:
any
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hunan, China (Mainland)
Brand Name:
Jinxin
Model Number:
SQ0812-10
Type:
Hand Tool Parts
Name:
Carbide tooth for rock drilling bits
Packaging & Delivery
Packaging Details
in wooden box wrapped by waterproof paper each. The package is avaliable based on customers' requirements.
Delivery Time
20 days once confirmed the order

Specifications

Carbide tooth for rock drilling bits which from Zhuzhou tungsten carbide base
1.best quanlity

Carbide tooth for rock drilling bits which from Zhuzhou tungsten carbide base

Properties & applications of Carbide tooth for rock drilling bits

Gradeg/cm3TRS
MPa
Hardness
HRA
Performance & application recommended
YG4C15.10180090.0Mainly used as small buttons for percussion bits to cut soft and medium hard formations.
YG614.95190090.5For coring crowns, electric coal drill bits, coal cutting picks, oil cone bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring.
YG814.80220089.5For coring crowns, electric coal drill bits, coal cutting picks, oil cone bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring.
YK0514.95250090.5Mostly used as the buttons of small and medium sized percussion bits and as the inserts of rotary prospecting bits to cut soft and medium hard formations.
YG8C14.80240088.5
YK1514.60245087.6Suitable to strips, conical buttons for rotary percussion-resistant, geological prospection buttons, cut soft and medium hard formations.
YK2014.40250086.8Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and hard formations.
YK2514.40255087.2Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and very hard formations.
YG11C14.40270086.5Largely for the inserts and buttons of percussion bits and tricone bits to cut medium-hard, hard, and very hard formations.
YG13C14.2285086.0Primarily for the buttons of tricone bits and inserts of rotary percussion bits to cut hard and very hard formations.
YG15C14.0300085.5For oil cone drill bits, for medium soft and medium-hard rocks.

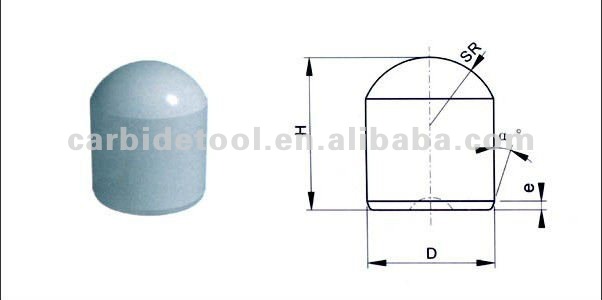

TypeDimension (mm)
DHSRß°
SQ06106.259.93.42026.5
SQ08128.2512.24.42026.5
SQ09149.2513.95.02026.5
SQ101910.2518.95.52027
SQ111911.3019.06.02027
SQ122112.3520.96.62028
SQ1220A-X12.3520.06.32524.75
SQ132013.3519.97.02027
SQ142214.3522.17.72016
SQ1424A-X14.3524.07.342525
SQ162516.3524.98.82016
SQ193019.3530.49.762030
SQ213221.6531.911.82030





TypeDimension (mm)
DHSRe
SQ0810-E158.2510.04.41.518
SQ0812-E158.2512.04.41.518
SQ1827-E1518.2527.19.21.518
SQ0812-F28.2512.24.40.730
SQ0915-F29.2514.95.00.730
SQ1013-F210.2513.05.50.730
SQ1114-F211.3014.06.00.730
SQ1216-F212.3516.06.60.730
SQ1318-F213.3518.07.00.730
SQ1418-F214.3518.17.70.730
SQ1625-F216.3524.68.80.730
SQ2030-F220.4530.011.50.730
SQ2230-F222.4530.012.00.730







TypeDimension (mm)
DHSRe
SQ1314-E15Q13.3513.57.01.518
SQ1320-E15Q13.3519.97.01.518
SQ1420A-E30Q14.3520.07.23.018
SQ1415B-E17Q14.3515.07.51.718
SQ1619A-E22Q16.3519.08.82.218
SQ1622A-E22Q16.3521.98.82.218

Standard of tolerances of D and H

DiameterHeight
Nominal sizeToleranceNominal sizeTolerance
=10±0.10=11±0.10
11 – 18±0.15
>10±0.1518 – 25±0.15
>25±0.20

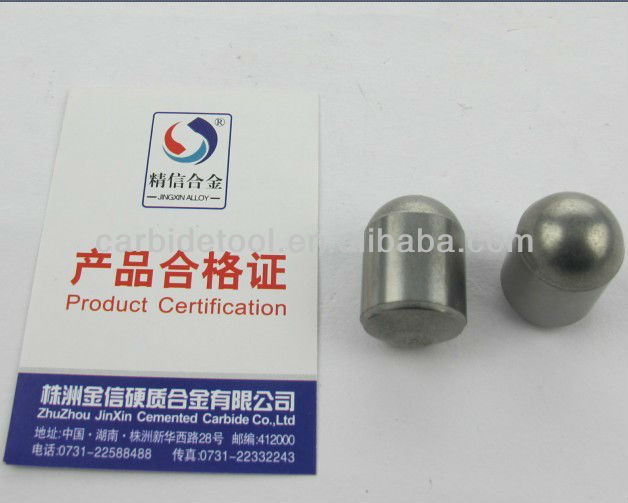

 The display of Carbide tooth for rock drilling bits

The packing of Carbide tooth for rock drilling bits

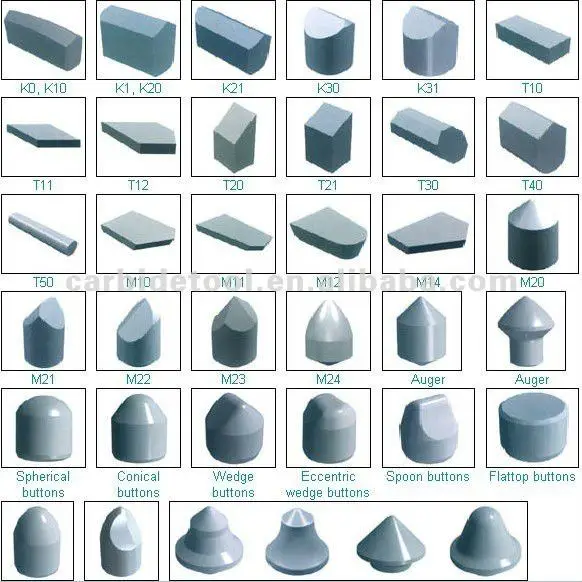

Zhuzhou Jinxin Cemented Carbide Co., Ltd specializes in manufacturing a series of Tungsten Carbide products.

Carbide Inserts for Mining Tools
Carbide Round Rods (dia from 1.0 to 25.4 mm)

Cabide for rock drilling tools and coal-mining tools

Carbide Tubes

Carbide strips and plates

Carbide tips for Debarking Bits
